Prototype PCB Assembly
KING FIELD is a PCBA manufacturer with over 20 years of professional experience . We are committed to providing customers with one-stop PCB/PCBA solutions.
☑ We support ODM/OEM
☑ 20+ years of PCB/PCBA manufacturing experience
☑ Precision assembly of SMT/BGA
Description
PCB types that can be used for assembly : rigid boards, flexible boards, rigid-flex boards, and aluminum boards.
Prototype PCB assembly specifications : Maximum size: 480x510 mm; Minimum size: 50x100 mm
Minimum BGA thickness : 0.3 mm for rigid boards; 0.4 mm for flexible boards.

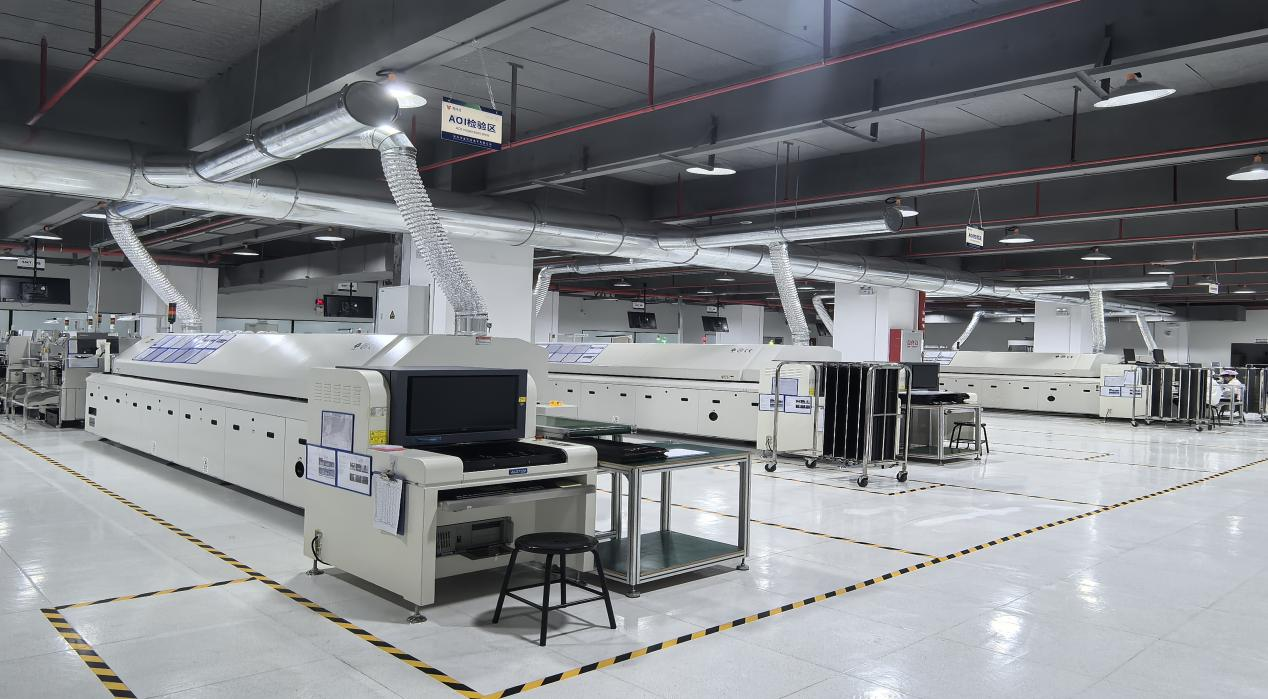

What is prototype PCB assembly?
Prototype PCB assembly refers to the production of a small number of circuit board samples for customers before mass production . The main purpose is to verify the design and test the functionality through small-batch trial production.
Why choose KING FIELD to meet your PCB prototyping needs?
Quality assurance
KING FIELD has over 20 years of industry experience in PCB and PCBA manufacturing . You can trust us to provide high-quality PCB prototyping and assembly services. KING FIELD 's quality meets the standards set by ISO9001, IATF16949, and ISO13485.
KING FIELD's Prototype PCB Assembly Service: We provide a one-stop PCBA service covering the entire process from PCB design, PCB/PCBA prototyping, PCBA production, and PCBA final assembly.
Production capacity
Our production line is equipped with 7 SMT lines, 3 DIP lines, 2 assembly lines, and 1 painting line. Furthermore, our YSM20R mounting accuracy can reach ±0.015mm, and it can handle components as small as 0.1005mm.
KING FIELD's daily production capacity for SMT can reach 60 million points; its daily production capacity for DIP can reach 1.5 million points .
KING FIELD has no minimum order quantity requirement; you can choose the quantity you want .
• It has 3 SMT production lines for prototype PCB assembly, providing PCB assembly with a 12-hour turnaround time.
• It has one SMT production line for small-batch production, providing PCB assembly with 24-hour fast turnaround.
• It has 3 SMT production lines for medium-volume production, providing PCB assembly with a fast turnaround time of 1-3 days.
After-sales guarantee
We offer a 1-year warranty on the prototype PCBA .
FAQ
Q1. What other tests are required for high-volume PCB assembly services ?
KING FIELD: In addition to online AOI and online SPI testing, circuit testing, functional circuit testing, and X-ray inspection are also required.
Q2. What is the minimum order quantity for your printed circuit board prototype assembly?
KING FIELD:
We don't have minimum order quantity (MOQ) for PCB prototyping. However, purchasing 5-10 prototypes gets you a better unit price.
Q3. How do you ensure the standardization of your prototype PCBA?
KING FIELD:
We purchase and operate state-of-the-art equipment, carry out stringent quality checks and have extensive design review processes to develop accurate and reliable prototypes.
Q4. What are the differences between your prototype PCB assembly and mass production?
KING FIELD:
Prototype PCB assembly can be considered as small-batch testing and making further improvements, whereas mass production is about manufacturing a large quantity of the final design.
Q5. Can I provide the components myself to assemble the PCB prototype?
KING FIELD:
Sure, you can provide some or all of the components required for assembly and we will do the assembly.
