Meta Recap: Unlock the secrets to microvia dependability and HDI PCB style. Find out about laser-drilled microvias, piled vs. surprised frameworks, microvia failure systems, market standards (IPC-2226, IPC-TM-650), and expert manufacturing techniques for long lasting high-density adjoin boards.

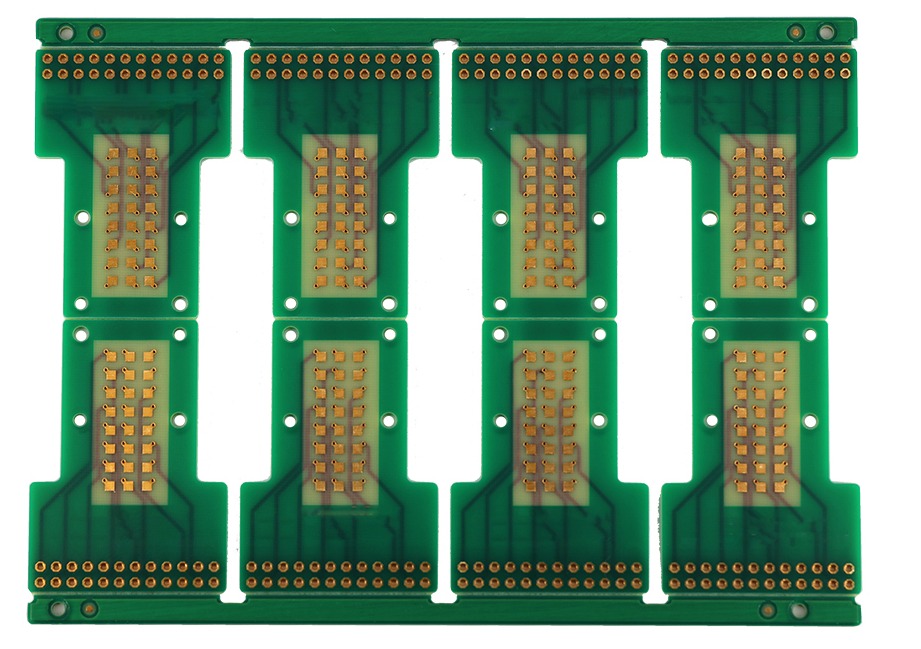

Printed circuit boards (PCBs) are the peaceful, elaborate freeways of contemporary electronic gadgets-- attaching, powering, and making it possible for every little thing from consumer mobile phones to clinical tools and satellites. As need has actually skyrocketed for smaller sized, faster, and much more trustworthy digital devices, the globe of PCB design has actually needed to advance substantially. The rise of microvias and High-Density Interconnect (HDI)PCB modern innovation has really noted an important shift in simply exactly how modern circuits are produced, miniaturized, and obtained high-speed, high-reliability applications.
Microvias-- those small, laser-drilled copper-filled interconnects-- may be simply hundredths of a millimeter in size, however they've made it possible for the rise of power and efficiency in today's ultra-compact electronics. By sustaining denser component placement, fine-pitch Sphere Grid Arrays (BGA), and fast, low-loss signal routing, microvias are true heroes of PCB miniaturization. More than that, understanding microvias is currently essential for ensuring durability against thermal cycling, reflow-induced failings, and long lasting reliability in harsh or mission-critical environments.
Nonetheless with this technology comes details and difficulty. Microvia dependability depends on acknowledging innovative items, through filling strategies, plating, and testing criteria. Issues like barrel fractures, copper gaps, and pad pull-out impend if you don't adhere to the ideal stack-up, keep the suitable element percentage, or choose the optimal procedures and assessment coupon codes according to IPC-2226, IPC-T-50M, and IPC-TM-650 criteria.
In the world of PCB design, an using is a vital framework enabling electric connection in between layers of the motherboard. While easy in concept, vias can be located in numerous types-- each enhanced for details demands in high-density or high-speed circuits.
A regular utilizing contains a round opening drilled using a laminated PCB stack-up, lined inside with electrically conductive copper to bridge traces in between various layers. Traditional through-hole vias range from the resulting in the bottom of the board, connecting all layers. Nonetheless as tool miniaturization multiplied, progressed through types-- blind, burried, and microvias-- were crafted for tighter packaging and enhanced signal honesty.
|
Via Type |
Hole Creation |
Connects Layers |
Typical Diameter |
Use Case |
|
Through-Hole (PTH) |
Mechanical drill |
Top to Bottom |
0.20-- 0.30mm |
Standard multilayer PCBs. |
|
Blind Via |
Mechanical/laser |
Outer to inner |
0.10-- 0.30 mm |
HDI, took care of deepness |
|
Hidden Via |
Mechanical/laser |
Inner to inner |
0.10-- 0.30 mm |
Layer-to-layer; high density |
|
Microvia |
Laser-drilled |
1 or 2 adjacent |
0.08-- 0.15 mm |
HDI, fine-pitch, miniaturized |
Modern digital needs-- higher I/O thickness, fine-pitch BGAs, and tighter layer matters-- drive developers to move past easy through-hole vias. The pursuit for smaller sized, thinner, quicker gadgets set off the change to microvias and HDI stack-ups, where every square millimeter matters, and every adjoin influences thermal administration, signal stability, and lasting dependability.
Blind vias are drilled from an external layer to several internal layers, however not completely via the PCB. They are crucial in HDI PCBs to link dense surface parts to internal directing without using up valuable board area.
Benefits of Blind Vias:
Space Performance: Secure realty on internal layers for high-density directing.
RF/Signal Security: Minimize the measurement of stubs triggering far much better performance at high frequencies.
Production Return: Reduced hazard of bending and layer shifting throughout lamination.
Applications: Blind vias prevail in cellphones, tablet computers, laptop computers, and any kind of type of device utilizing fine-pitch parts and tight type elements.
Surprise vias connect indoor PCB layers however do not get to the outer surface areas. They're entirely ingrained within the board.
Advantages & Usage Situations:
Makes it possible for intricate layer-to-layer interconnects without surface impact.
Makes it possible for much more sending channels for high pin-count BGAs.
Construction Tips: Hidden vias require various lamination actions, boosting production complexity and rate. Conscious registration is required to prevent misalignment flaws.
Microvias are small, laser-drilled vias with a common size of 80-- 100 μm (0.003-- 0.006" or ≤ 6 mil). They regularly connect just close-by layers-- outstanding for build-up treatments in HDI boards.
Technique Truths:
Aspect Proportion: ≤ 0.75:1 (deepness: size); per IPC-T-50M criteria, ≤ 1:1 if making use of ≤ 6 mil.
Laser Boring: Makes it feasible for microvias to be specifically positioned, created, and stacked or surprised.
Filled & Capped Vias: Commonly loaded with copper for stamina; "Covered" if the utilizing is made use of as a solder pad (Via-in-Pad).
Piled microvias are vertically lined up, connecting throughout accumulation layers right. Staggered microvias are balanced out in each layer, contacted short traces between them.
|
Type |
Pros |
Cons |
Typical Use Case |
|
Stacked |
Saves room, straight path |
Higher stress, more difficult to fill/cap |
Fine-pitch BGA runs away |
|
Staggered |
Improved reliability |
Consumes a great deal a lot more transmitting area |
High-reliability, broad temperature level |
IPC-2226 defines stack-up types, filled/capped standards, and microvia geometry for both styles.
Other Notable Via Types.
Filled Up and Capped Microvias: For via-in-pad styles, see to it strength/coplanarity.
Miss Vias: Link nonadjacent layers, missing out on over various other layers.
Through-Hole (PTH): For connectors and mechanical effectiveness.
High-Density Interconnect (HDI) technology is enhanced the idea that every using and trace must provide optimal feature in very little space. Microvias are primary to this, making it possibile for developers to break through the limits of typical through-hole vias and supply extraordinary circuit density.
|
Type |
Description |
Microvia Types Used |
|
Type I |
1 accumulation layer per side |
Blind microvia + with by means of |
|
Type II |
1 build-up/side + covert vias |
Blind + covert + with by means of |
|
Type III |
≥ 2 build-up/side + stacked microvia option |
Stacked/staggered/blind/ buried |
Miniaturization: Path signals from ultra-fine-pitch components (pitch <0.8 mm) in small form factors.
Signal Integrity: Shorter, laser-drilled microvias exhibit lower inductance and parasitic capacitance, vital for DDR, RF, and high-speed designs.
Thermal Management: Microvias conduct heat vertically, allowing for smart heat dissipation strategies—often used as thermal vias under heat-generating ICs.
Reduced Crosstalk: Copper-filled and well-aligned microvias reduce unintended coupling between adjacent signals.
"In HDI, the microvia is your surgical tool—precise, reliable, and essential for high-speed, high-density signal breakout," says an HDI Design Specialist.
Pre-Drilling: Verify lamination, mark target/capture pads, ensure registration.
Laser Drilling: Use UV or CO2 laser for ≤6 mil holes; precise control for taper and capture pad exposure.
Post-Drilling: Ablation cleaning, evaluate hole quality, check for residue/glass debris.
Electroless copper as a seed layer
Electrolytic copper plating (conformal/pulsed) for complete filling—especially for via-in-pad microvias. Additives reduce void formation.
Filled and capped microvias are plated until flush with surface (sometimes with a copper cap for solderability).
Cross-sectioning, micro-etch testing for voids, adhesion issues, copper thickness uniformity.
D coupon fabrication per IPC-2221 Appendix B for reliability testing.
Microvia aspect ratio: As dictated by IPC-T-50M, the aspect ratio (depth to diameter) should not exceed 0.75:1—or 1:1 for vias ≤6 mil—to ensure reliable copper plating and avoid thin walls or voids at the bottom. High aspect ratios increase the risk of incomplete copper fill, decreased reliability, or copper voids, especially during thermal excursions in assembly.
Registration tolerance: Proper alignment (±2–4 mils) between the laser-drilled hole and capture/target pad is crucial. Misregistration can lead to interface separation, open circuits, latent defects, or increased risk of reflow-induced failures.
Capture pad diameter: The capture pad should be ≥80% of the via diameter, as per best microvia design guidelines. This ratio ensures robust copper adhesion and mitigates the risk of corner cracks or pad pull-out during thermal cycling or mechanical stress.
Solder mask clearance: Zero solder mask expansion is recommended around microvias, especially in HDI boards, minimizing risk of masking overlap or misregistration which could compromise resistance and yield.
Sequential lamination: Multiple lamination cycles—critical for buried vias, stacked or staggered microvias—introduce additional risk for Z-axis (CTE) expansion mismatch and stress concentration. Dimensionally stable and laser-drillable prepregs or ABF (Ajinomoto Build-up Film) are preferred to manage this this.
|
Parameter |
Copper-filled Microvia |
Unfilled Microvia |
|
Reliability |
Best for thermal cycling, BGA in-pad use, low risk of collapse |
OK for simple-or low layer count boards |
|
Assembly Suitability |
Solder over via-in-pad, coplanarity for packages |
Not suitable for BGA in-pad, collapse risk |
|
Processing |
More plating cycles, longer fab time, higer cost |
Faster, less costly |
|
Void Risk |
Mitigated with pulse plating/additives; requires inspection |
Less critical, but susceptible to barrel cracks |
Copper-filled and capped microvias are essential for high-reliability boards, particularly when used as via-in-pad for BGAs or fine-pitch CSPs, or when stacking microvias for maximum vertical density.
Microvia reliability is paramount for mission-critical electronics. The intersection of design, materials, manufacturing, and inspection defines success. Here's what every designer and fabricator must know:.
Barrel cracks: Usually start at sharp fillet transitions or where aspect ratio is too high.
Corner cracks (capture pad to target pad interface): Associated with Z-axis expansion (CTE mismatch) during reflow.
Target pad pull-out: Occurs if pad is too small or adhesion is poor.
Misregistration: Either hole-to-pad or layer-to-layer, critical in stacked microvias.
Copper voids: Poor plating, faulty additives, or trapped gas during fill.
Latent ("open") microvias: Above Tg, glass transitions may allow microcracks to self-heal, hiding failures during room-temp testing but emerging under field conditions.
A durable format integrates the 'examination as you create' viewpoint-- reputable microvias begin with the suitable product stack-up and end with traceable D-coupon testing."-- HDI Top Quality Manager, Global Circuits.
|
Test/Parameter |
Standard |
Purpose |
|
Four-wire resistance monitoring thoughout reflow |
IPC-TM-650 2.6.27 |
Presents resistance modifications ≤ 5 % throughout replacement setting up |
|
Thermal shock( -55 ° C to +210 ° C) |
IPC-TM-650 2.6.7.2, HATS |
Detects latent/open microvias, barrel/corner cracks |
|
D-Coupon design |
IPC-2221 Appendix B |
Traceability & simulation of worst-case stress and anxiety |
|
Visual/Microetch |
In-process, post-fab |
Assures copper fill, lack of rooms, pad stability |
Substantial Benefits.
Unequaled miniaturization: Allows multi-layer HDI stack-ups with greatly even more I/O in little footprints.
Boosted signal honesty: Laser-drilled microvias reduce stubs and parasitics, vital for high-speed, low-loss routing( DDR, RF, SerDes ).
Thermal administration: Trustworthy upright warm training courses; important in heat-dense strategies (power, CPU, FPGA).
Layout versatility: Support for piled, staggered, miss vias and complex BGA runs away.
Assembly-friendly( when filled/capped): Soldering honesty for fine-pitch BGA/CSPs taking advantage of via-in-pad.
Price: Laser expedition, copper fill/cap, consecutive lamination, and assessment cycles accumulate. Production complexity: Several lamination actions, D coupon directing, stringent evaluation procedures. Return loss hazard: Thin copper, misaligned vias, unexposed problems if procedure control is poor. Thermo-mechanical dependability: Much more user interface = more danger locations( CTE mismatch-driven divides).
Problem: To program high pin-count SoC bundles( e.g., 0.4 mm pitch BGAs), standard through-hole vias would certainly consume big board area; not feasible for today's slim phones.
Service: Microvia HDI PCB methods (Kind II/III stack-ups, primarily filled/capped and staggered microvias) made it possible for the direct hideaway of BGA rounds-- improving electrical efficiency, reducing EMI, and allowing multi-functional PCBs < 1 mm thick.
Need: High integrity in severe -40 ° C to 125 ° C treatment.
Alternative:
Filled out and topped microvias in an HDI structure (Kind III) with surprised, twin stacked through frameworks.
Extensive D-coupon and thermal shock screening( per IPC-TM-650).
End result: < 0.5 % area falling short rates; durable throughout severe thermal biking and resonance.
Scenario 3: High-speed Networking Hardware.
History: Fine-pitch BGA FPGAs, high-speed SerDes.
Secret advantage:
Staggered microvias, filled/capped in via-in-pad; allows > 30 Gbps trusted eye-diagrams with minimal return loss (VSWR < 1.2:1).
Boosted routing versatility, lowered crosstalk, and much better warm dissipation.
To think of just how HDI stackups and microvia frameworks permit next-gen PCB formats, consider these useful layer setups:.
|
Stackup Example |
Layer Count |
Lamination Steps |
Via Types Included |
Use Case |
|
HDI Type I |
4–6 |
Single build-up per side |
1-step blind microvias + through-holes |
Tablets, laptop computers |
|
HDI Type II |
6–8 |
Build-up, plus hidden core |
Blind, hidden( laser/mechanical), using-- holes |
Medical, commercial IoT |
|
HDI Type III |
8–12+ |
Mult. accumulation and lam cycles |
Staggered, piled, blind, hidden, skip microvias |
Smartphones, routers, auto ECUs |
Below are some frequently asked questions regarding microvias and HDI PCB reliability:
Q: What triggers the most normal microvia failings during reflow?
A: The leading systems are Z-axis development (CTE inequality), weak bond at the capture/target pad interface, and copper areas or inadequate fill. Piled microvias, if over AR or poorly filled up, are specifically in jeopardy.
Q: Does making use of crammed and capped microvias enhance honesty?
A: Yes. Filled/capped microvias are vital for via-in-pad, loaded setups, and BGA gets away. They avoid solder wicking, pad collapse, and withstand thermal cycling-induced splits.
Q: What is the suitable aspect proportion for microvias in HDI PCBs?
A: Abide by IPC-2226 and IPC-T-50M: ≤ 0.75:1 for optimal honesty, 1:1 just for ≤ 6mil microvias. Greater facet proportions risk of spaces and tension and anxiousness concentration.
Q: Simply how is microvia dependability evaluated?
A: Use D-coupon resistance tracking throughout simulated reflow( IPC-TM-650 2.6.27 ), thermal shock biking (-55 ° C to +210 ° C, per IPC-TM-650 2.6.7.2),micro-section analysis, or HATS (Really Accelerated Thermal Shock).
Q: Specifically how do microvia stackup design guidelines influence enduring efficency?
A: Staggered stacks distribute heat and tension much better; piled vias should always be filled/capped. Spacing and pad/via percentages are important to stop user interface dividing or latent defects.
Q: What are IPC criteria for microvia PCBs?
A: Mainly IPC-2226 (HDI stack-up/via style), IPC-2221 (coupon/test), IPC-T-50M (meaning), IPC-TM-650 2.6.27 and 2.6.7.2 (testing/thermal shock).
Q: Are microvias appropriate for power/thermal management?
A: Yes, copper-filled microvias are typically made use of as vertical thermal vias under QFNs, BGAs, and power gizmos to boost dissipation.
