Cable Assembly
KING FIELD is a PCBA manufacturer with over 20 years of professional experience . We are committed to providing customers with one-stop PCB/PCBA solutions .
☑ 20+ years of PCBA manufacturing experience
☑No minimum order quantity requirement
☑Provides one-stop PCB/PCBA solutions
Description

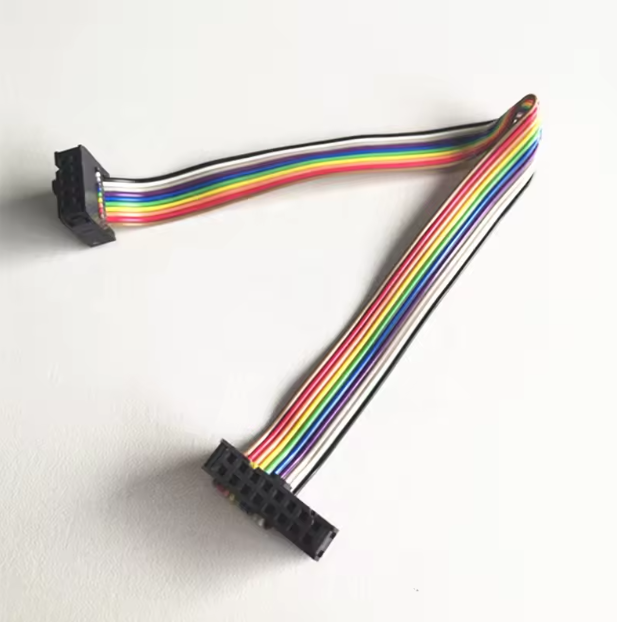

What is a cable assembly?
Cable assembly refers to a combination of several cables or conductors that are systematically arranged and have connectors at their ends for connecting equipment. The assembled cables transmit power, data, or signals between different electronic devices or systems. Compared to single cables, cable assemblies are highly sophisticated solutions that satisfy a variety of requirements electrically, mechanically, and environmentally.
KING FIELD's cable assembly capabilities
KING FIELD cable assembly connector types :
- Modular connectors
- Circular connectors
- Electrical contacts
- Customized solutions
- The ODU connector also can be combined with third-party products if necessary.
KING FIELD is capable of making custom logos and molds:
a. We are able to manufacture customized connector shapes and logos;
b. We support designing, drawing 3D and 2D creations;
c. Custom mold design
d. Lead time: 8~10 days for manufacturing connector molds and submitting samples.
Project |
Ability |
Wire type |
UL certified wires, VDE certified cables, automotive wires, drag chain cables, medical cables, etc. |
Material |
Polyvinyl chloride (PVC), silicone rubber, or ethylene-ethylene difluoroethylene copolymer (ETFE). |
conductor |
Bare copper wire, tinned copper wire, silver-plated copper wire, gold-plated copper wire |
Certification |
UL, VDE, CE 3C or custom-made special cables |
Connector type |
N-type and 7/16-type connectors , modular connectors , circular connectors , electrical contacts , digital patch panel (DDF) connectors , BNC connectors , SMB connectors. |
protective tube |
PVC pipes, corrugated pipes, heat shrink tubing, braided tubing |
plug mold |
We have over 300 plug molds, many of which have readily available tooling. |
industry |
Automobiles, electronic products, machinery, lighting, new energy , home appliances, industrial equipment, medical devices, etc. |
Reasons to Pick KING FIELD As Your Cable Assembly Partner
l 20+ years of industry experience
- Our team of 300+ engineers and production staffs is well-experienced in PCB assembly covering various areas such as automotive, aerospace, medical, and consumer electronics through our 20+ years of PCB industry experience.
- With a capacity of 60 million points on SMT and 1.5 million points on DIP per day, KING FIELD production line is fitted with 7 SMT lines, 3 DIP lines, 2 assembly lines, and 1 painting line. Besides, our YSM20R the placement accuracy can reach ±0.015mm, and it can handle the tiniest 0.1005 components.
- Delivery cycle and delivery
Samples or small batch orders can be sent to you within just 3-5 business days ; whereas medium to large orders usually take 7-14 business days, depending on the quantity of the order.
- After-sales service
KING FIELD provides a very rare service of "1-year warranty + lifetime technical consultation" . We guarantee a product with a non-human-caused quality defect will be returned or exchanged for free and the associated logistics costs will be on us.
The average response time for our after-sales team is less than 2 hours.
More than 98% is our problem-solving rate average.
l Transportation support
Domestic delivery is provided through SF Express/Deppon Logistics, which covers all areas; international delivery is available through DHL/UPS/FedEx with the most professional shockproof packaging; we also offer a triple protective packaging include anti-static, anti-oxidation, and anti-collision protection.
FAQ
Q1. For which products can you provide cable assembly ?
The prototype connectors, modular connectors, and custom solutions of KING FIELD can all have cable assemblies included. Individually assembled electrical contacts are also offered.
Q2. What is the difference between a PCB and a cable assembly?
PCB is the main part of electronic devices that supports electronic components and electrically connects them. Cable assemblies are used to connect the electronic components, for example, signal lines and power lines.
Q3. What types of connectors are used in cable assemblies?
KING FIELD: We support the following connector types: N-type and 7/16-type connectors , modular connectors , circular connectors , electrical contacts , digital patch panel (DDF) connectors , BNC connectors , and SMB connectors.
Q4. What are the advantages of overlay connectors ?
Overlay connectors provide a connector casing that can be perfectly adjusted not only to the shape of the connector itself but also to the sheath of the cable. Besides, we offer custom geometries and colors. In addition, strain relief and bend protection are significantly improved through encasing.
Q5. Do you support customized wrapping ?
Absolutely, we are able to offer personalized packaging even at very economical prices for small-batch production .
