Turnkey PCB Assembly
As a PCBA manufacturer with over 20 years of professional experience , KING FIELD is committed to providing high-quality, highly reliable turnkey PCB assembly solutions to customers worldwide.
☑ 20+ years of industry experience, independently developed MES system
☑ SMT capacity: 60,000,000 chips/day
☑ Mounting accuracy: Chip / QFP / BGA ± 0.035mm
Description
What is turnkey PCB assembly?
Turnkey PCB assembly in a nutshell is the service of contract manufacturing which is offered by pcb assembly companies. Clients can completely outsource the production of their electronics by using this service. It is a one-stop manufacturing solution that includes design, sourcing of components, pcb assembly, testing, and final product delivery.
KING FIELD's full turnkey pcb assembly services
Materials handled: FR-4, high Tg FR-4, aluminum substrate, high frequency materials, flexible printed circuit board (FPC)
Placement precision: Chip / QFP / BGA ± 0.035mm
Smallest assembly component : 01005
Minimum thickness of BGA: 0.3mm for rigid boards; 0.4mm for flexible boards;
Smallest precision lead size: 0.2mm
Component placement precision: ±0.015mm
Tallest component: 25mm
SMT capacity: 60,000,000 chips/day
Minimum Order Quantity (MOQ) : No minimum order quantity (MOQ) required ; support production from 1 piece to bulk orders.
Assembly and delivery cycle : Delivery within 24 hours once all components are ready.
Testing: In-Circuit Testing (ICT) , Flying Probe Testing (FTP) , Bed of Needles Testing , 2D/3D Automated Optical Inspection (AOI) , Visual Inspection , X-ray Inspection
Component types : 0.25 mm pitch ball grid array (BGA) , 0.25 mm pitch fine-pitch components , 01005 (0402) package chip-level components
Turnkey solution: KING FIELD will take care of component procurement .
Partial turnkey: You can send some components directly to KING FIELD.
Full consignment: You are responsible for sending all components , and KING FIELD is responsible for PCB manufacturing and assembly.
Quality Management System : IATF16949:2016 , ISO13485:2016, ISO14001:2015, ISO9001:2015 , and a self-developed Manufacturing Execution System (MES).
Types of assembly : Surface Mount Technology (SMT) , Through-Hole Mount Technology (THT) , Hybrid Assembly (SMT+THT) , Single/Double-Sided Assembly , Automated/Manual Soldering
Why go for KING FIELD?
KING FIELD has been providing reliable circuit boards as well as smart turnkey PCB assembly solutions to clients all around the globe for several years.
l More than 20 years of serving the industry
- Working in the printed circuit board industry for more than twenty years has granted us an extensive knowledge of rapid delivery assembling techniques for different sectors such as automotive, aerospace, medical, and consumer electronics.

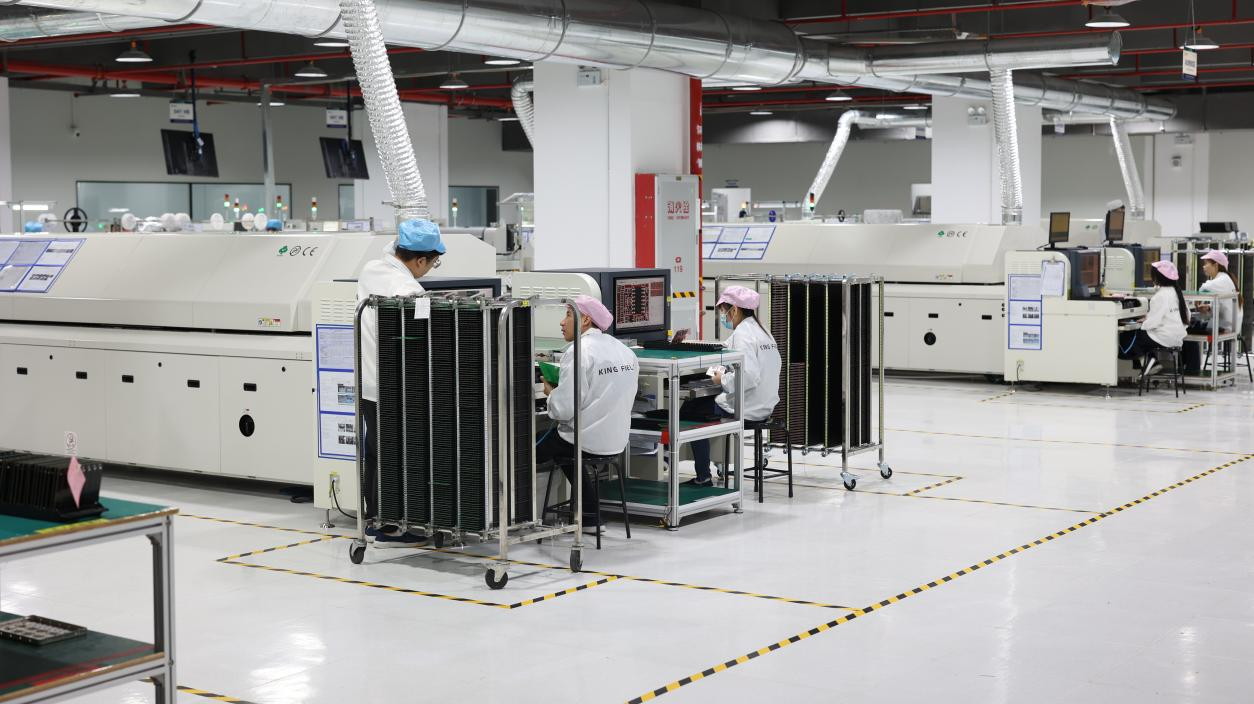

- KING FIELD's production line includes 7 SMT lines, 3 DIP lines, 2 assembly lines, and 1 painting line. Our YSM20R can achieve a placement accuracy of ± 0.015 mm, which is capable of handling the smallest 01005 component. The SMT capacity is 60 million points per day, and DIP is 1.5 million points per day.
- Customer support
We offer KING FIELD 24-hour technical support service. From pre-sales to after-sales, we even go back and forth consulting with our customers and building a close working relation is our goal.
- We offer a rare "1-year warranty + lifetime technical consultation" in the industry. If a product is found to have a non-human-caused quality problem, it can be returned or exchanged free of charge and the related logistics costs will be borne by us.
- Our after-sales team responds within an average of 2 hours and fixes problems at over 98% rate.
- Fast turnkey service and supply chain assurance
When the components are ready, the delivery will be done within 24 hours, 5-day standard delivery cycle, 600,000+ local inventory of components, turnkey component procurement service, and global logistics support.
FAQ
Q1.Do you provide partial turnkey PCB assembly services?
KING FIELD: Of course! Partial turnkey PCB assembly services is only one of the several options that we offer alongside full turnkey PCB solutions.
Q2. What is the delivery cycle for turnkey PCB assembly after placing an order?
KING FIELD: Since the nature of our production is large-scale, the delivery period for our turnkey PCB assembly or mass production is 2-4 weeks.
Q3.If there is an urgent need, can you provide turnkey PCB assembly and immediate delivery services?
KING FIELD: When a customer makes a request for urgent needs, we will prioritize the evaluation, and upon approval, the application will be processed for the turnkey PCB products provision as soon as possible.
Q4.Do you provide turnkey PCB assembly conformal coating services?
KING FIELD: Certainly, our turnkey PCB assembly services also include conformal coating services.
Q5.How do you conduct quality control?
KING FIELD : We have our own independently developed MES system and first article tester. We are a smart factory that can ensure quality through multiple intelligent systems .
