Standard PCB
As a PCB manufacturer with over 20 years of professional experience, KING FIELD is committed to providing high-quality, highly reliable standard PCB solutions to customers worldwide.
☑ 20+ years of PCB manufacturing experience
☑Provides one-stop PCB/PCBA solutions
☑ Supports ODM/OEM
Description
Substrates : FR4, halogen-free substrates, Rogers, high TG FR4, high density interconnect (HDI), rigid-flex boards, semi-flexible boards, aluminum substrates, copper substrates, polyimide, RF and microwave materials .
Surface treatment : hot air leveling, lead-free hot air leveling, electroless nickel-gold plating, electroless silver plating, electroless tin plating, mechanical solder mask.
SMT capacity: 60,000,000 chips/day
Delivery time: 24 hours (express)
Order volume: The SMT factory supports medium to large-volume production.

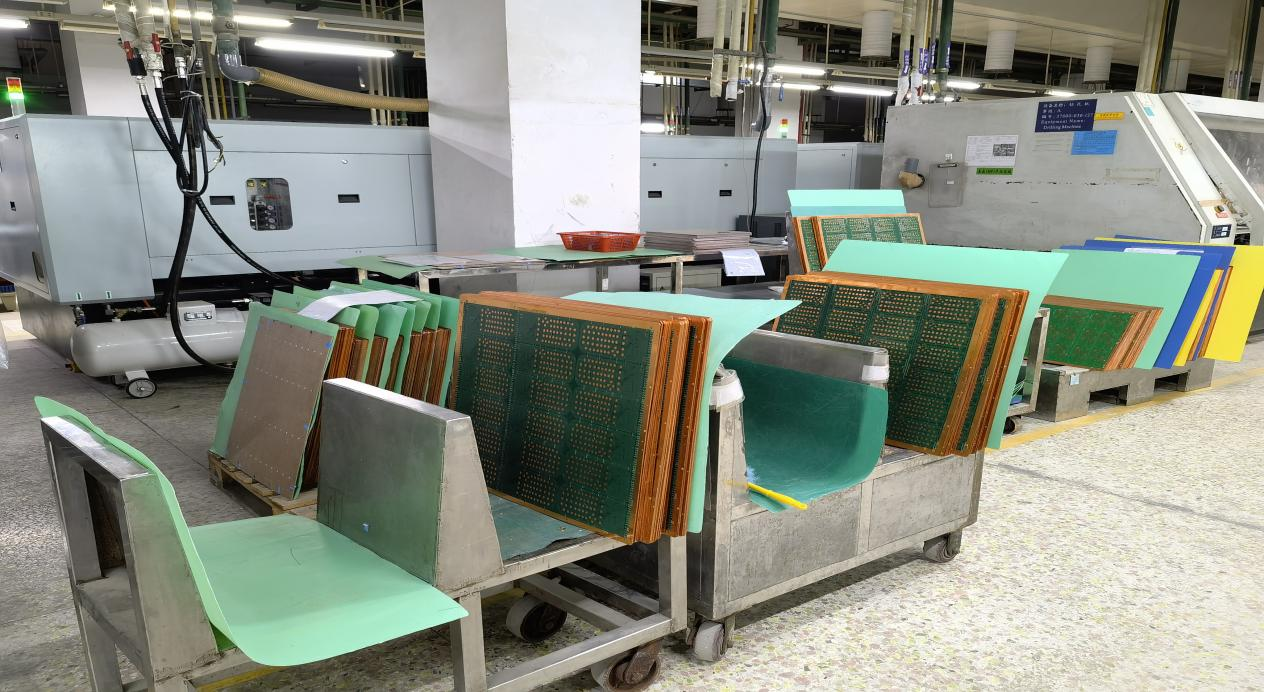

KING FIELD's Standard PCB Manufacturing Capabilities and Parameters
Project |
Ability |
Substrate |
FR4 standard Tg 135℃, FR4 high Tg 170℃, FR4 high Tg 180℃, halogen-free substrates. Brands include ShengYi, Iteq, Elite Materials Corp., NanYa, Kingboard, Grace, GoWorld, TUC, Ventec, Isola, Nelco, Rogers, Taconic, Panasonic, etc. |
Plate thickness |
0.4 mm - 3.2 mm |
Plate thickness tolerance |
±0.1 mm, ±10% |
Outer copper thickness |
0.5 oz / 1 oz / 2 oz / 3 oz / 5 oz |
Finished copper thickness |
Compliant with IPC Level 2 or 3 standards |
Inner copper thickness |
0.5 oz / 1 oz / 2.0 oz |
Minimum line width / line spacing |
3 milliliters / 3 milliliters |
Surface treatment |
Hot air leveling (HASL), lead-free hot air leveling, RoHS compliant electroless nickel-gold plating (ENIG), RoHS compliant electroless silver plating, RoHS compliant electroless tin plating, RoHS compliant organic solder mask (OSP) |
Order Quantity |
No minimum order quantity limit |
Delivery cycle |
2 days - 5 weeks (express service available) |
Why choose KING FIELD 's standard PCB products?
l Rich experience
Since its establishment in 2017, KING FIELD has accumulated rich experience in PCB manufacturing . We currently have a research and development team of 50+ people and a production team of 300+ people. We are committed to providing customers with one-stop solutions from solution design to mass production delivery.
l quality assurance
In terms of quality control , KING FIELD has passed six major system certifications: IATF 16949, ISO 13485, ISO 9001, ISO 14001, ISO 45001, and QC 080000. We have 7 SPI, 7 AOI, and 1 X-Ray testing equipment to ensure the quality of each PCB . Our MES system can realize full traceability of each PCB .
l One-stop service
- KING FIELD provides solutions including material procurement, PCB reverse engineering and prototyping, DIP component soldering, and quality inspection and testing.
- Our services mainly include a manufacturing platform that integrates front-end R&D design, procurement of superior components, precision SMT placement, DIP insertion, complete machine assembly, and full-function testing.
l Production capacity
- KING FIELD's production line is equipped with 7 SMT lines, 3 DIP lines, 2 assembly lines, and 1 painting line. The YSM20R has a placement accuracy of ±0.035mm and can handle the smallest 0.1005 device, meeting the extremely high requirements of chip-scale packaging (CSP) and micro-pitch BGA .
- The daily production capacity of SMT can reach 60 million points; the daily production capacity of DIP can reach 1.5 million points, and expedited orders can be delivered within 24 hours, efficiently responding to customer needs.
