What Is Silkscreen on a PCB?

Apr 11, 2026

A Complete Overview to published motherboard Silkscreen Labeling, Building And Construction, and Assembly

Introduction



The globe of electronic devices rests upon the integrity, quality, and accuracy of its published circuit card (PCBs). Amongst the layers and fancy networks of copper traces exists an important but usually neglected element-- the PCB silkscreen. The silkscreen on a PCB is not part of the electrical attribute, nevertheless it's deeply embedded in the fabric of PCB building and construction, PCB assembly, and lasting PCB upkeep.



Why Focus on Silkscreen



Silkscreen, occasionally described as PCB labeling, is more than just surface-level information. It's the released tale, taking advantage of non-conductive epoxy ink, that helps PCB assemblers, developers, and repair specialists quickly determine reference designators, assessment factors, polarity indications, warnings, and component sets out. As innovation developments and PCBs become a great deal much more densly packed, the relevance of well-applied silkscreen expands. Without it, establishing would be intricate, debugging would absolutely be slow-moving, and adjustments could be ravaging.

Why Should You Care?

Whether you're developing a solitary PCB version, a run of tiny quantity PCBs, or a huge set of production boards, recognizing the function, products, and applicaiton of PCB silkscreen aids developers and producers decrease expenses, decrease errors, and develop easy to use things.

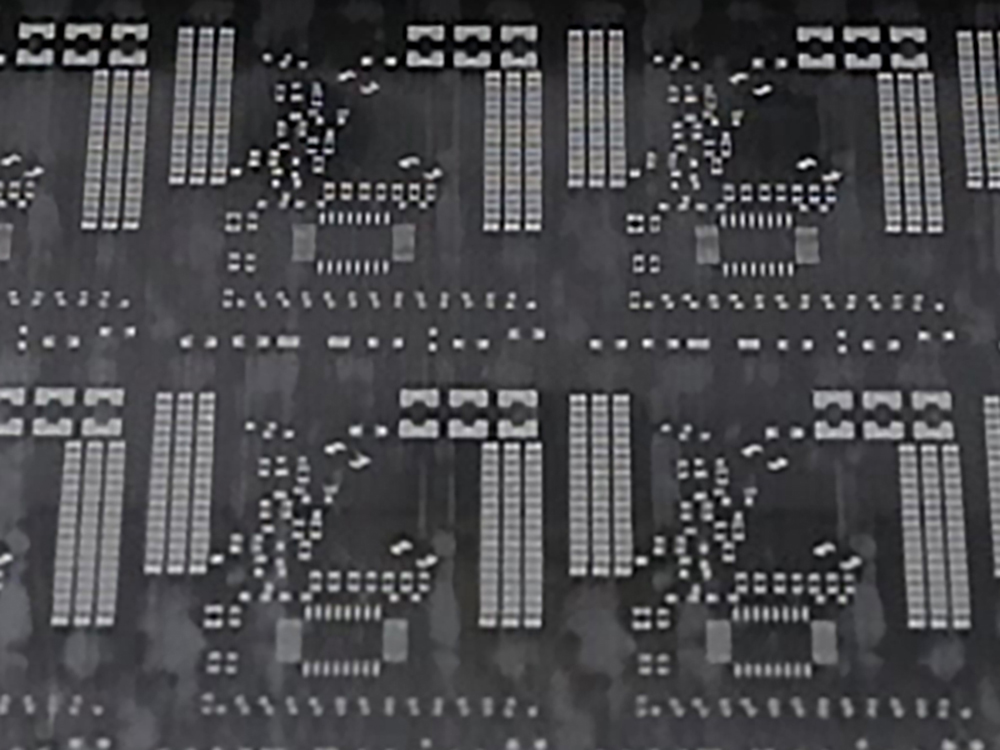

PCB Stencil2.jpg



What Is Silkscreen in printed circuit board?

Silkscreen in PCB describes a crucial yet regularly downplayed layer in PCB building and PCB setting up. Technically, the silkscreen is a non-conductive epoxy ink or acrylic ink layer printed directly onto the area of a PCB-- generally on the aspect side (leading layer) and occasionally on the solder side for included quality. This layer offers all the crucial textual and graphic information needed for precise component recognition, setting up, and long-term upkeep.

The Analysis and Make-up

Silkscreen, also referred to as PCB silkscreen, is made up of specialized inks made to withstand the soldering process and ongoing handling. These inks are normally made from epoxy or acrylic products, non-conductive naturally, making sure that the marks never ever before hinder the conductive traces or solder mask below. Expert manufacturers use inks formulated for strength, strength, and resistance to chemicals and heat.

Where Is Silkscreen Applied?

Part Side (Top Layer): Without a doubt one of the most normal, the top silkscreen annotates every visible part of a regular board, consisting of referral designators, polarity markings, and assessment factors near elements.

Solder Side (Base Layer): Some high-complexity or double-sided boards take advantage of silkscreen under layer. Including silkscreen right here is somewhat much more pricey because of the manufacturing actions required, but it substantially help in PCB setting up and fixing.

The Feature of the PCB Silkscreen

Despite its non-electrical function, silkscreen on a PCB is just one of the most vital facets of PCB labeling, as it:

Clearly defines where each part ought to be placed.

Marks essential electrical variables, such as test points and ground links.

Emphasizes vital warnings and polarity indications.

Incorporates maker information like PCB logo style, board identification numbers, and even tax commitment conformity details on bigger manufacturing runs.

Silkscreen Placement and Coverage

The silkscreen is never ever before placed atop the solder pads or conductive traces, as this can result in solderability issues or element imbalance, a risk aspect for tombstoning. The complying with table summarizes correct silkscreen placing standards:



Silkscreen Placement

Reason

Over solder mask area

Ensures ink bond and legibility

Away from solder pads

Prevents soldering issues and part lift

Clearly around pads

Allows for easy visualization throughout establishing

Side of PCB

Reserved for board logos/IDs, not elements



Why Is Silkscreen give Important in PCB Building And Construction?

In the sophisticated globe of PCB manufacture and PCB assembly, the silkscreen layer plays an irreplaceable function that prolongs far past ordinary labeling. Its helpful, security and and safety, and process-oriented benefits guarantee both performance in manufacturing and benefit of uise for technical groups throughout an item's life span. Allow's look into extensive why silkscreen on a PCB is so crucial.

1. Advertising Accurate Component Identification

Throughout setting up, a largely thriving PCB could contain hundreds or maybe hundreds of PCB components-- each calling for certain placing, placement, and soldering. The silkscreen offers reference designators and clear component outlines straight on the board, eliminating any unpredictability.

2. Improving PCB Assembly and Troubleshooting

PCBs are significantly produced utilizing automated procedures like pick-and-place gadgets and AOI (Automated Optical Inspection). These manufacturers count on specific positioning, which is led by the silkscreen tags and describes. During manual setting up or hand adjustments, the silkscreen guarantees specialists can comply with establishing pictures without issue.

When blunders happen, the silkscreen allows specialists to swiftly map and examine points, confirm component orientation9, and determine areas requiring rework, saving time and reducing costly errors.

3. Enhancing PCB Documentation and Maintenance

A superb silkscreen design functions as an on-board documentation property. It matches the schematic referral designators to the real-world style, bridging the gap in between layout and physical product. For field specialists or assistance developers looking after maintenance, quick access to take a look at aspects, voltage referrals, or adjustments is feasible directly on the board-- no datasheets or plans asked for.

Silkscreen payments to files:

Pin mapping for ports

Fuse and test factor identifiers

Board revision probelm and construct numbers

4. Improving Individual Experience and Product Safety

As electronic devices reach wider audiences, clear markings-- allowed by silkscreen-- boost the end-user experience. Tags for switches, indicator LEDs, or link headers make things much more user-friendly. Extra significantly, informing indications and risk-free handling marks straight on the PCB reduced the threat of misuse or electrostatic discharge (ESD) events.

5. Maintaining Quality Assurance & Conformity

Several markets require clear on-board recognition for traceability, lead-free procedure acknowledgment, or company qualifications (UL, CE). The silkscreen provides the area for this consistency details without interfering with wiring. As an instance, board change numbers or making lot IDs are silkscreened for liability.

Table: Secret Advantages of Silkscreen in Numerous PCB Phases

Stage

Role of Silkscreen

PCB Design

Matches design to schematic; error-checking

PCB Fabrication

Guides pattern and setting up prep job, protects against errors

PCB Assembly

Ensures fast & precise part placing; minimizes misalignment mistakes

Screening & QA

Quick acknowledgment of examination factors & fixing areas

Field Maintenance

Fast clinical diagnosis and repair work; trustworthy suggestion

Governing Approval

On-board labeling for consistency and traceability

PCB Silkscreen Printing Process

The journey of silkscreen on a PCB from an electronic files to a physical board is a comprehensive process that calls for precision, specialized products, and rigid adherence to style standards. The stability, legibility, and sturdiness of the silkscreen are important for both PCB fabrication and PCB setting up. Enable's break down the silkscreen printing process detailed.

Prep Work of PCB Silkscreen

Every successful silkscreen application starts in the PCB design stage. Using personalized CAD software program application, the designer extremely carefully draws up all silkscreen elements, ensuring that recommendation designators, aspect outlines, polarity markings, and and exam factors are clear and consistent. At this stage, it is essential to:

Select correct typefaces and sizes.

Validate adequate spacing between message, symbols, and PCB pads.

Prevent overlapping silkscreen with pads, traces, or vias to reduce manufacturability worries and shield against component misplacement or solderability issues.

Double-check for mistakes making use of a design policy check (DRC) to capture troubles that could bring about silkscreen omissions in manufacturing.

Export the silkscreen layer as part of the Gerber information set-- these are industry-standard information that summary manufacture equipment.

Creating a Stencil

Silkscreening frequently uses a pattern-- a formed mesh where the ink will certainly be related to the board. For contemporary automation, this pattern is used a laser photo plotter that exposes the silkscreen layout onto a photosensitive layer attached to the mesh.

Secret actions:

Phototooling: The silkscreen layer Gerber records is made use of to develop a photographic movie or direct digital exposure onto the mesh.

Stencil Innovation: The display is chemically established, removing unexposed service to generate a pattern where ink can stream.

Placement: The stencil is meticulously lined up to the PCB's solder mask layer to guarantee registration accuracy, particularly for fine-pitch boards.

Ink Application & Curing

This stage differs depending upon the silkscreening development being used, yet the fundamental process is as complies with:

1. Ink Application: An one-of-a-kind non-conductive epoxy ink or acrylic ink is similarly put onto the pattern and obliged with the mesh onto the PCB utilizing a rubber squeegee.

The ink entirely covers all disclosed areas as created by the stencil.

Automated screen printers see to it even stress and anxiety and normal insurance protection, perfect for tool volume PCB and high volume manufacturing.

For little quantity PCB or version runs, hand-operated application is still normal.

2. Ink Treating: To see to it toughness, the published silkscreen needs to be healed to follow the board and stand up to warmth or chemical direct exposure.

Thermal Dealing With: Boards are placed in an oven at a defined temperature degree.

UV Caring for: Modern inks might utilize ultraviolet light to without delay take care of the silkscreen in position.

Refine Flow Table: Handbook Silkscreen vs. LPI and DLP

Stage

Manual Silkscreen Printing

Liquid Photo Imaging (LPI)

Direct Legend Printing (DLP)

Art work Creation

Gerber to film/stencil

Digital design to printer.

Digital design to printer.

Stencil/Screen Needed?

Yes

Yes (temporary mask layer)

No

Ink Type

Epoxy/acrylic

Photoimageable ink (UV-reactive)

Polymer UV or inkjet

Application Technology

Press/squeegee

Exposure, growth, washout

Inkjet printer head

Curing

Thermal oven

UV light (polymerization)

UV light

Suitable For

Prototyping, reduced volume

High precision, fine pitch

Full digital, high-mix, complicated boards



Typical Silkscreen PCB Printing Techniques.

Relying on the quantity, intricacy, and expense considerations of a task, distributors choose among three main silkscreen printing methods for PCBs: Handbook Display Printing, Fluid Picture Imaging (LPI), and Straight Story Printing (DLP). Each method has one-of-a-kind benefits and is fit to particular phases of PCB manufacture, from prototyping to high-volume manufacturing.

1. Guidebook PCB silkscreen printing.

Manual PCB show printing is a traditional method and still generally utilized for PCB models, small-volume PCBs, or scenarios where cost level of sensitivity surpasses resolution or rate. In this process, the silkscreen ink is physically pushed with a pre-patterned mesh (the pattern) onto the PCB taking advantage of a rubber squeegee.

Trick Functions:

Uses a polyester display screen stretched over light weight aluminum frames that is formed with the silkscreen art work.

Epoxy- or acrylic-based non-conductive ink is applied over the mesh, guaranteeing the ink simply calls areas defined in the format.

Alignment marks are used to ensure that the published patterns are correctly signed up with the underlying solder mask.

Dealing with is typically performed in a stove, developing a resistant silkscreen.

Pros & Cons:.

Pros

Cons

Appropriate for quick prototyping

Lower precision compared to LPI or DLP

Reduced configuration expenditure for singular or little PCB batches

Line dimension usually limited

Easy for rapid design changes

Not suitable for really graet pitch, complex formats

Hand-operated ability impacts consistency

Ink distributing can obscure great attributes

2. Liquid Picture Imaging (LPI)

Liquid Image Imaging (LPI) is the market standard for many tool- and high-volume PCB manufacture as a result of its outstanding precision and repeatability. In LPI, a fluid, photoimageable acrylic ink is splashed or covered onto the boards.

Process Steps:

A photomask is lined up over the ink-coated PCB.

UV light straight exposure hardens (polymerizes) the revealed regions, withh unexposed locations staying soft.

The board is developed (cleaned), getting rid of unhardened ink and revealing the patterned silkscreen.

A last UV healing or thermal bake hardens the noting for resilience.

Main Advantages:

High resolution: Attainable line sizes as fine as 4 mil (0.10 mm)-- vital for congested boards.

Consistent contrast: Can suit white, black, or yellow inks relying on style needs.

Honesty: Maintains automated analysis, best for mass production.

Very little ink hemorrhage or spreading out, making it ideal for small boards.

3. Direct Legend Printing (DLP).

DLP-- sometimes called Direct Inkjet Printing-- represents the lowering edge of silkscreen development and is dramatically taken on for both center and high-mix, low-volume PCB orders.

How It Features:.

Specialized inkjet printers deposit acrylic-based UV-curable ink straight from electronic details onto the PCB area.

The board passes under a UV light, instantaneously treating the ink.

No physical stencil, mask, or phototool is needed-- full layout adaptability.

Highlights:

Feature

DLP Benefit

Genuinely digital process

No motion pictures, patterns, or arrangement; simple alteration

Unbelievably grat features

Ideal for 0.10 mm line sizes and thick varieties

Fast turnaround

Print-on-demand capability

Multi-color options

Logos or warnings in numerous shades possible

Limited waste

Only needed ink utilized, no washing chemicals

Perfect For:

Quick-turn PCB models and small/medium great deals.

Advanced boards with numerous unique or modifying element designators.

Layouts where branding, set codes, or QR codes are called for.

Potential Downside:

Higher per-unit cost for ultra-large batches contrasted to LPI.

Some inks may be less robust in hostile lead-free soldering settings unless especially developed.

Contrast Table: PCB Silkscreen Printing Techniques.

Technique

Best Use Case

Min. Line Width

Setup Cost

Resolution/Quality

Lead Time

Flexibility

Manual Display Printing

Prototypes, low-volume

~ 0.15-- 0.20 mm

Low

Fair

Short

High (manual)

Fluid Photo Imaging

Mid/high-volume, wonderful pitch

~ 0.10 mm

Medium

Excellent

Medium

Moderate

Straight Tale Printing

Digital, quick-turn, complicated

~ 0.10 mm

Moderate

Excellent

Fast

Highest



What Is the Feature of Using a Silkscreen Layer?

The silkscreen layer on a PCB uses a crucial duty that broadens much past initial establishing. It is the aesthetic and educational bridge in between the electronic globe of style and the physical world of production, setting up, procedure, and upkeep. Right here, we'll discover why every high quality PCB-- from a very easy version to a high-complexity production board-- need to continuously contain a well-executed silkscreen.

1. Streamlining Element Placement and Acknowledgment.

During PCB assembly, whether automated or hand-operated, top quality is the top priority. With thousands of part details, referral designators, and pin 1 indicators, the silkscreen layer:.

Guides pick-and-place tools for right component positioning, decreasing the danger of mistakes throughout high-speed setting up.

Aid hand soldering and spruce up by supplying clear, straight aesthetic signs for motorists.

Minimizes pricey oversights that can bring about tombstoning or lost parts, seeing to it the desired attribute and stability of the curcuit.

2. Giving Establishing, Examination, and Maintenance Recommendations.

An excellent silkscreen layer interacts needed instructions directly on the PCB, important for all stakeholders:.

Setting up groups make the most of clear markings, specifically in high-volume or mixed-model lines.

Checking out and QA designers can quickly locate examination factors, voltage nodes, and beneficial areas with specific labeling.

Fixing and maintance employees have immediate accessibility to pinouts, part numbers, and modification standing-- also years down the line, long after initial setting up records are gone.

3. Recommending Polarity and Orientation.

Among one of the most vital silkscreen features is the exact representation of polarity indications and positioning for polarized parts.

Stops dreadful blunders such as reversed power, which can completely harm fragile parts and create board failing.

Guarantees normal positioning for multi-pin gadgets-- specifically important for ports and ICs with many comparable impacts.

4. Safety and security and Consistency.

The silkscreen operates as a first-line caution system on the board itself:.

Warning icons enhance safety by leading both manufacturing and area option techniques.

Market certifications (UL, CE) and ecological indications (RoHS, WEEE) can be added, meeting consistency requirements without crowding the documentation.

Manufacturer's logo layout, product alteration, and unique ID numbers allow rapid traceability, which is necessary for QA audits and solution warranty surveillance.

5. Enhanced End-User Interface.

For PCBs that show up to or mounted by end users, such as analysis boards, growth bundles, or user-serviceable products:.

Silkscreen offers port tags, switch over functions, and LED condition tales, enhancing usage without referencing manuals.

Boosts brand existence and perceived professionalism and reliablity with clear logo designs and version markings.

6. Making It Feasible For Effective Troubleshooting and Alteration.

When format modifications, screening, or field repair solutions are needed, a robust silkscreen layer can save hours:.

Developers and experts can utilize clear tags to permeate the best test aspects, reset jumpers, or swap eliminate self-esteem.

Reduces dependence on outdoors schematics or assembly illustrations-- which might be shed or obsoleted after years in the field.

7. No Electrical or Architectural Impact.

An essential advantage of silkscreen is that it is:.

Non-conductive and chemically inert, posturing no hazard of shorts or damage.

Light-weight and does not impact board thickness or electric homes.

Applied as a final cosmetic/functional layer, making certain no disruption withh the solder mask or copper circuitry.

Precisely how to Layout a Silkscreen for a PCB?

Developing a long lasting silkscreen layer is both an art and a science. A sound silkscreen can considerably simplify PCB assembly, assessment, troubleshooting, and consumer communication with your digital product. Nevertheless, reckless silkscreen format can introduce producing challenges, decrease readability, or perhaps result in non-functional boards. Below are the essential concepts and workable strategies for generating effective silkscreen on a PCB.

1. Beginning with a Clear Strategy

Start the silkscreen style process with a full understanding of your PCB's purpose, the level of density, and the designated setting up strategies.

2. Select Legible Fonts and Sizes

Use uncomplicated, sans-serif fonts like Arial, Helvetica, or OCRA for maximum readability.

Maintain a minimal message height of 1.0 mm and minimum line dimension of 0.15 mm. Some high-end treatments can sustain also much better lines, nevertheless constantly verify your manufacturer's restrictions.

Stay clear of exceedingly pushed, italic, or decorative typefaces; top quality constantly comes first on PCB silkscreen.

3. Tactically Location the Silkscreen Aspects.

Suggestion designators should be positioned adjacent to or within the component recap but never ever before in addition to pads or via openings.

Polarity signs and Pin 1 notes ought to correspond and user-friendly: utilize a dot, notch, or triangular as appropriate, and place them so they turn up after component placement.

Allocate area for exam factors in easily accessible locations.

Place caution signs near ESD-prone locations, high-voltage points, or special-use components.

4. Maintain Correct Spacing and Clearance.

Maintain silkscreen marks a minimum of 0.2 mm (8 mil) much from all pads, vias, and subjected copper traces. Many contemporary PCB CAD gadgets can immediately "clip" or "eliminate" silkscreen where it conflicts with numerous other elements.

In mobile locations, if their desires area, focus on among the most vital markings over the minor ones.

5. Select the Right Silkscreen Shade for Solder Mask Comparison.

For eco-friendly solder masks, white silkscreen supplies the best readability.

On black or dark solder masks, white or yellow silkscreen is encouraged.

White solder masks usually work best with black or yellow silkscreen.

For even more technological or high quality boards, several shades can in some cases be maintained through innovative DLP.

Solder Mask

Preferred Silkscreen Color

Comments

Green

White

Industry default; most clear

Black

White, Yellow

Yellow for extreme atmospheres

Blue/Red

Blue/Red

Strong comparison

White

Black, Yellow

For user-facing or high-contrast UI

6. Explain Layer Use.

Usage different layers for Leading Silkscreen and Base Silkscreen (solder side) in your Gerber exports. Simply recommend which marks are for which side, particularly important in double-sided assembly, to avoid mistakes and issue.

Validate if your maker supports silkscreen on the solder side and recognize feasible increase for double-sided application.

7. Think Of Future Changes.

Contain alteration tags and board variant numbers for tracking and future updates.

Room enabling, include areas for day codes, lot numbers, or even barcodes/QR codes-- especially valuable for high-value or regulated work.

8. Confirm with Real-World Checks.

Prior to finishing the silkscreen, publish a 1:1 array overlay or use your CAD software program application's 3D customer to look for:

Overlaps of silkscreen with pads or keep-out areas.

Hard to reach or protected markings after digital assembly.

Font style readability and appropriate alignment of all message.

9. Prepare Correct Gerber Data

Export silkscreen layers utilizing standard data names recognized by manufacturers:

. GTO (Gerber Top Overlay, i.e., top silkscreen)

. GBO (Gerber Base Overlay) Share these information in addition to a setting up illustration (if center) and validate the maker's process and needs for silkscreen handling.

Growth of PCB Silkscreen: From Traditional to Modern Techniques.

The application of silkscreen on PCBs has in fact come a long way taking into consideration that the earliest days of published ciricuit card production. As need for PCB construction enhanced and develops came to be denser, silkscreen technology progressed to satisfy brand-new needs for accuracy, speed, and customization. Comprehending this growth not only talks about the options you hvae today nevertheless furthermore highlights why particular methods are preferred for details manufacturing ranges and demands.

The Conventional Era: Handbook Silkscreen Printing

In the very early days of electronic devices generating, hands-on display printing was the criterion for consisting of silkscreen to PCBs. Right here's what this procedure entailed:.

A polyester mesh display was firmly extended over strong light weight aluminum frameworks.

The silkscreen pattern was transferred onto the mesh making use of a light-sensitive remedy.

The non-conductive epoxy ink was put on the screen, and a rubber squeegee was utilized to need the ink with the openings, placing message and graphics onto the PCB's surface.

Boards were baked in a recovery oven to solidify the ink and increase adhesion.

While dependable and relatively economical for reduced to medium quantity manufacturing, this method carried drawbacks:.

Minimal resolution: Minimum practical line dimensions around 0.15-- 0.20 mm (6-- 8 mil).

Enrollment difficulties: Positioning of the stencil to the pads/traces can sometimes be off, specifically for fine-pitch formats.

Labor-intensive: Suitable fit for models or little runs, as brand-new displays had to be generated for every single board alteration.

The Age of Automation: Liquid Photo Imaging (LPI).

With denser boards and increasing need for mass modification, the sector moved to Liquid Picture Imaging (LPI). The LPI procedure presented numerous necessary enhancements:.

Photoimageable acrylic ink was layered onto the board's area.

The silkscreen "art work" was printed onto a clear photomask, afterwards completely straightened over the PCBs.

Direct exposure to ultraviolet (UV) light treated the ink specifically where called for, adhering to the very accurate mask pattern.

The board was established in a tidy treatment, getting rid of uncured ink and leaving sharp, chemical-resistant markings.

A last UV or stove treatment guaranteed toughness.

The Digital Change: Direct Legend Printing.

Enter the age of electronic production with DLP-- also described as direct inkjet printing. This technique built on digital print contemporary innovation to supply:.

No physical display or photomask needed. The artwork is relocated right from an electronic information to the PCB.

Specialized inkjet printer heads exactly jet UV-curable acrylic ink onto the board. The ink is instantly cured by UV light sources integrated withh the printer.

Near-perfect registration with format documents and the underlying PCB qualities.

Modern DLP delivers:

Extremely fine features.

Instantaneous design changes; zero-delay for changing markings or running short, customized production batches.

Aid for numerous shades for logos, warning indications, or specialized requirements.

Ecologically friendlier procedures.

What Does the Future Hold?

The continual miniaturization of electronic devices, the introduction of ingenious electronic manufacturing, and the growing use automation and robotics are driving yet a lot more advancement in silkscreen contemporary technology.

Increased ink sturdiness for severe environments (warm, solvents).

Boosted environment-friendly inks and low-waste procedures.

Digital operations synchronization-- straight from design data to silkscreen, closing the "last-mile" space in nimble electronic tools making.

FAQ Location: Silkscreen on a PCB.

1. What is the conventional color for PCB silkscreen?

White is the market standard for silkscreen on green solder mask PCBs due to its remarkable comparison and readability. Nonetheless, contemporary producers give various other shades such as black and yellow. Some progressed treatments likewise sustain multicolor choices for specialized applications.

2. Does silkscreen influence the price of a PCB?

Yes, the improvement and intricacy of silkscreen layers can influence the general PCB construction rate. Facets consist of:.

Variety of sides: Silkscreen on both top (element) and bottom (solder) sides costs a lot more.

Color alternatives: Non-standard colors might incur addional costs.

Resolution and detail: Finer line sizes or customized graphics might be pricier, particularly for designs or specialized runs.

Quantity: For huge manufacturing runs, the expenditure influence is lessened because of economic climates of range. Still, the detailed rise is little contrasted to the vital duty silkscreen plays in manufacturability and traceability.

3. Can the silkscreen be printed on both sides of a PCB?

Most definitely. Lots of professional PCB manufacturers sustain silkscreen on both the aspect side (top) and and solder side (base). While having silkscreen on both sides brings benefits, it may a little raise manufacturing time and rate. Always denote silkscreen needs simply in your order and Gerber files.

4. Why is silkscreen critical for PCB documentation?

The silkscreen essentially brings the schematic to life, mapping important labeling, suggestion designators, polarity marks, and alerting icons straight onto the board. This on-board paperwork removes uncertainty in setting up, quicken troubleshooting, help in area repair solutions, and meets many governing demands.

5. Can silkscreen be totally customized for every and every task?

Yes! Modern silkscreen processes, especially with Straight Tale Printing (DLP), enable per-board personalization-- also in low-volume or prototyping contexts. You can include logo designs, barcodes, QR codes, and also special traceability codes. For high-value or regulated things, this flexibility supports security, supply monitoring, and customer-specific labeling.

what is silkscreen on a pcb-0
what is silkscreen on a pcb-1

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000
